TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch | Desktop/Rack mount

SKU: TL-SG1024DE Category: Tags: , , , , , ,

₹5,800.00 ₹12,999.00

  • 24 10/100/1000Mbps RJ45 ports
  • Provides network monitoring, traffic prioritization and VLAN features
  • Green technology reduces power consumption
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
  • Plug and play
Add to wishlist
Compare

Description

Interface

  • 24 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX

Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity – Fanless
Physical Security Lock – No

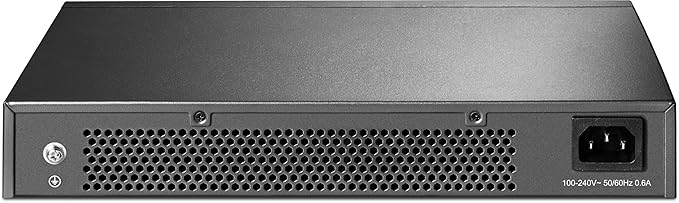

Power Supply – 100-240VAC, 50/60Hz

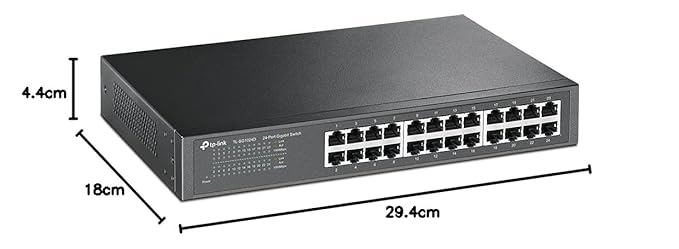

Dimensions ( W x D x H ) – 11.6 × 7.1 × 1.7 in (294 × 140 × 44 mm)
Mounting – Rack Mountable
Max Power Consumption – 13.66W (220V/50Hz)
Max Heat Dissipation – 46.58 BTU/h

PERFORMANCE

  • Switching Capacity – 48Gbps
  • Packet Forwarding Rate – 35.7Mpps
  • MAC Address Table – 8K
  • Packet Buffer Memory – 4.1Mbit
  • Jumbo Frame – 10KB

Quality of Service

  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control

L2 Features

  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention

Additional information

Weight 1.6 kg
Dimensions 29.4 × 14 × 4.4 cm
